Tube Cleaning Systems

GC11 TUBE CLEANING GUN
Robinson Combination Air and Water Cleaning Gun is light weight and easy to use. One squeeze of the trigger allows water to lubricate the tube cleaner as air propels the cleaner through the tube.
Cleans Condenser or Heat Exchanger tubes in seconds.
For 3/8" to 1-3/8" OD tubes.

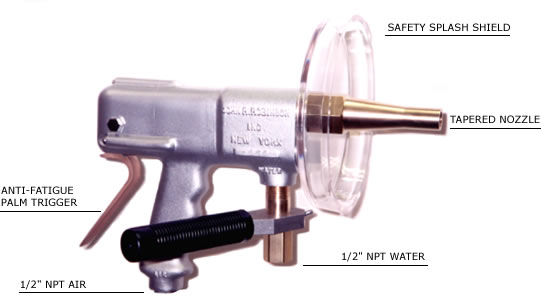

GC11 Gun comes complete with Tapered Nozzle, Safety Splash Shield, Left or Right Removable Hand Grip and Carrying Case.
Robinson GC11 is the Contractor and Plants Personal Choice.

HEAVY DUTY GUN • SIMPLE TO USE • LIGHT WEIGHT • ABLE TO REACH ALL TUBES • HIGH WATER AND AIR FLOW • EASY REPLACEMENT OF WORN PARTS • PALM TRIGGER REDUCES OPERATOR FATIGUE • SIDE HANDLE GRIP FOR LEFT OR RIGHT HAND USE.

Can shoot all types of tube cleaners. One gun with interchangeable nozzle shoots all sizes of cleaners
SPECIFICATIONS:

AIR PRESSURE:

Minimum 40 PSI
Maximum 150

WATER PRESSURE:

Minimum 30 PSI
Maximum 150 PSI

Pressure varies according to the particular condition of the Condenser or Heat Exchanger, Tube OD, Gauge, Length and how badly fouled the unit is.

Air pressure should always be at least ten or twenty pounds greater than the water pressure. This reduces any backwash.

CARE AND STORAGE: Wash thoroughly with fresh water then blow dry. Lubricate moving parts.

REMOVES: MUD • SLIME • SILT • BARNACLES • ALGAE • SPORE • MUSSELS • CLAMS
