Gasket Cutters

JRGCM Rotary Gasket Cutter

The JRGCM is a low cost precision gasket cutting machine that cuts gaskets with speed, ease, and accuracy in all standard gasket material from 1/32” to 3/16” thick. It cuts gasket sizes from 2” inside diameter to 22” outside diameter. The gasket cutter comes complete with a carrying case.

All parts are replaceable.  Motorized version is available.

Extra center bars may be purchased for gasket cutting:

#25 2” to 22” in diameter
#26A 22” to 42” in diameter
#26B 42” to 62” in diameter
#34 Set of Cutters – one top & one bottom cutter

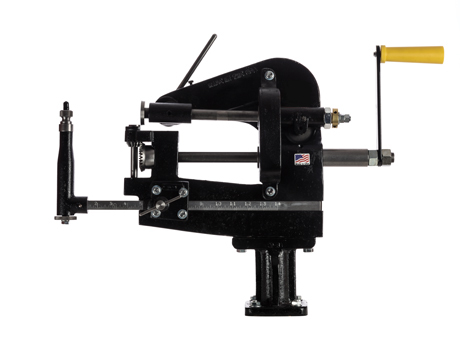

JRHDG   Heavy Duty Gasket Cutting Machine

A heavy duty machine designed specifically for cutting metallic gaskets, hard fiber, and thick Teflon. In addition, this machine cuts gaskets from rubber, cork, and wire insert packing. JRHDG will cut gaskets 2” inside diameter to 28” outside diameter. Extra center bars can be purchased to cut gaskets 28” to 54” and 54” to 80”.


Maximum thickness that can be cut:

Soft steel, Zinc, Brass, Tin, Galvanized Iron .04”
Stainless Steel &Monel Metal .03”
Copper 0625”
Lead & Fiber, Rubber, Teflon 125”
Cork .25”



Extra center bars and parts:

13 2” to 28”
13A 28” to 54” Medium bar
13B 54” to 80” Long bar
28 Set of cutters One top & one bottom cutter for Metal
29 Set of cutters One top & one bottom cutter for Non-metal

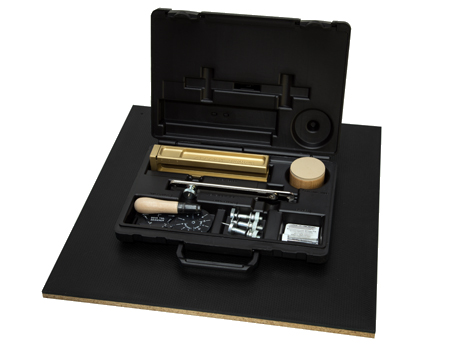

JRCGK   Circular Gasket Cutter Kits

Circular extension gasket cutters are available in five convenient kits to meet a broad range of cutting requirements. The brass cutting block slides easily over a variety of gasket materials as the modular extension design allows you to quickly adjust your cutting size from 1/4” to 61”.



Circular Gasket Cutter Kit comes complete with carrying case and all parts are replaceable.

JRCGK13 Cuts 1/4” ID to 13” OD
JRCGK25 Cuts 1/4” ID to 25” OD
JRCGK37 Cuts 1/4” ID to 37” OD
JRCGK49 Cuts 1/4” ID to 49” OD
JRCGK61 Cuts 1/4” ID to 61” OD
