Accessories for Surface Condenser Cleaning

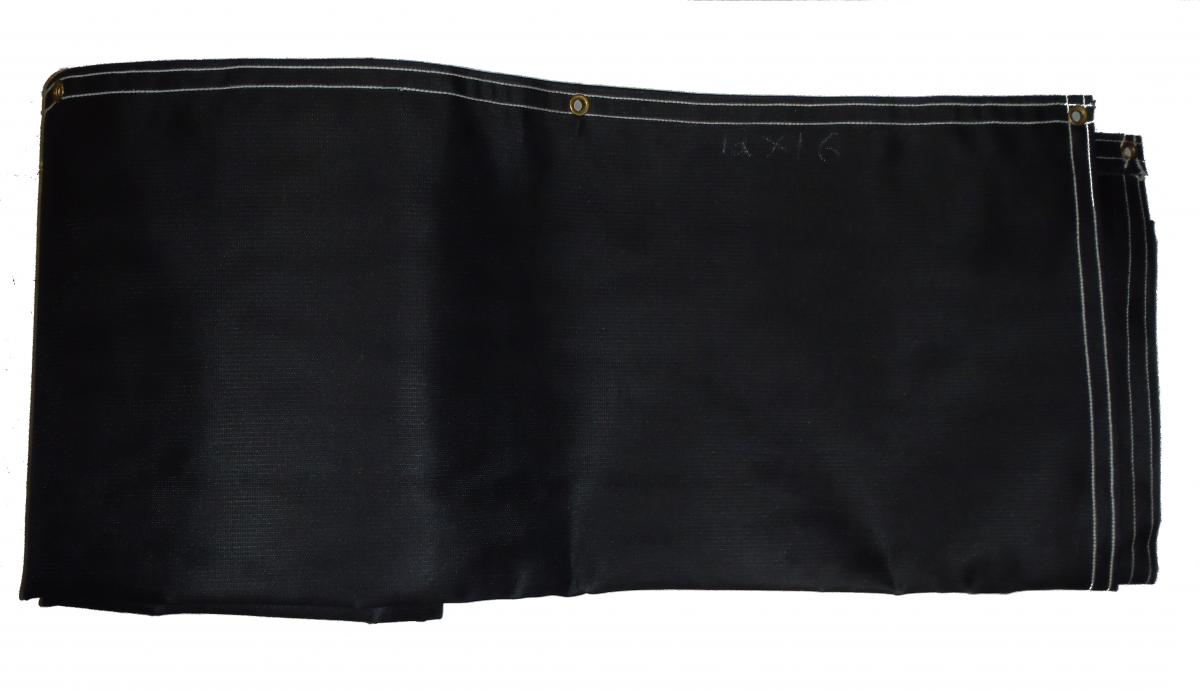

Catch Nets and Armor Nets


1 ply catch nets are easy to hang to protect damage to cleaners and the water box. Armor nets have grommets around the perimeter and will catch all types of cleaners after projecting throught the tube.
CN66 6' x 6'    CN1212 12' x 12'   CN1620 16' x 20'







Flexible Fiberglass Ram Rod


This fiberglass is used during condenser tube cleaning to ram debris out of blocked tubes. The flex ram rod is fed through the manway into each blocked tube, applying a manual ramming action to dislodge blockges.
Available 3/8" and 1/2" diamteters of various lengths, commonly 50' FRR3850 and FRR1250







Nozzle Extensions


Extensions can be installed between the GC11 gun and nozzle to increase the length of the nozzle. Making it possible to reach beyond the shell casing. Extensions are available in three lengths:
NE12        12"  LONG
NE18         18" LONG
NE24          24" LONG

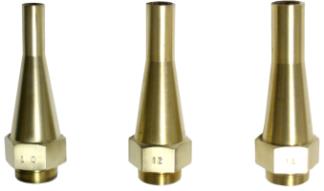

Gun Nozzles Available in several sizes

Nozzle # 6 8 10 12 14 16 18
"A" Diameter .355 ,389 .498 .623 .713 .850 1.124
Sizes 3/8" 1/2" 5/8" 3/4" 7/8" & 1" 1-1/8" 1-1/4" & 1-3/8"







Nozzle with rubber tip

#120           For 5/8" and 3/4" Tubes
#140           For 7/8" and 1-1/2" Tubes
*Replacement rubber tips available









Delrin Nozzles


NOZ DE 5834     For 5/8" and 3/4" Tubes
NOZ DE 781       For 7/9" and 1-1/2" Tubes
