Accessories

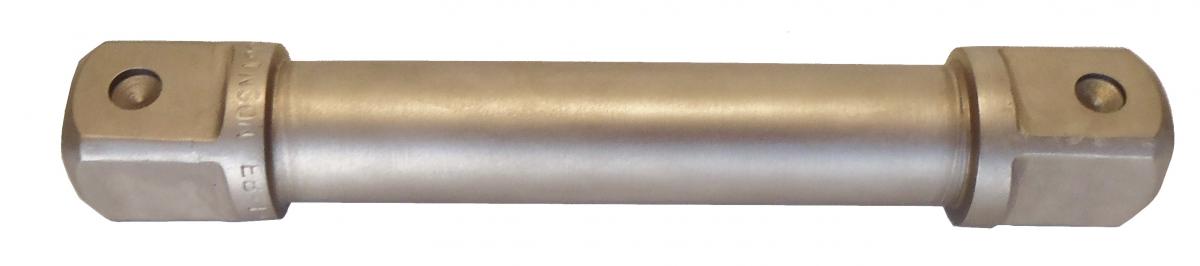

Male x Male Drive Extension



SQUARE SIZE

MODEL NO.

INCH

MM

3/8

9.5

DE38

1/2

12.7

DE12

3/4

19.0

DE34

1

25.4

DE1000



Universal Joint: Female – Female

D:\ab-charts by ronaldo delete and die\Scan\UnFF.BMP

SQUARE SIZE

OAL(inches)

MODEL NO.

INCH

MM

3/8

9.5

2-1/4

UJ/95

1/2

12.7

2-5/8

UJ/127

3/4

19.0

3

UJ/195

1

25.4

3-3/4

UJ/254

 Other sizes available.



Universal Joint: Male – Female

D:\ab-charts by ronaldo delete and die\Scan\UnMaleFemale.BMP

SQUARE SIZE

OAL (inches)

MODEL NO.

INCH

MM

3/8

9.5

2-1/4

UC/95

1/2

12.7

2-19/32

UC/127

3/4

19.0

3-9/32

UC/195

1

25.4

4

UC/254

Other sizes available.

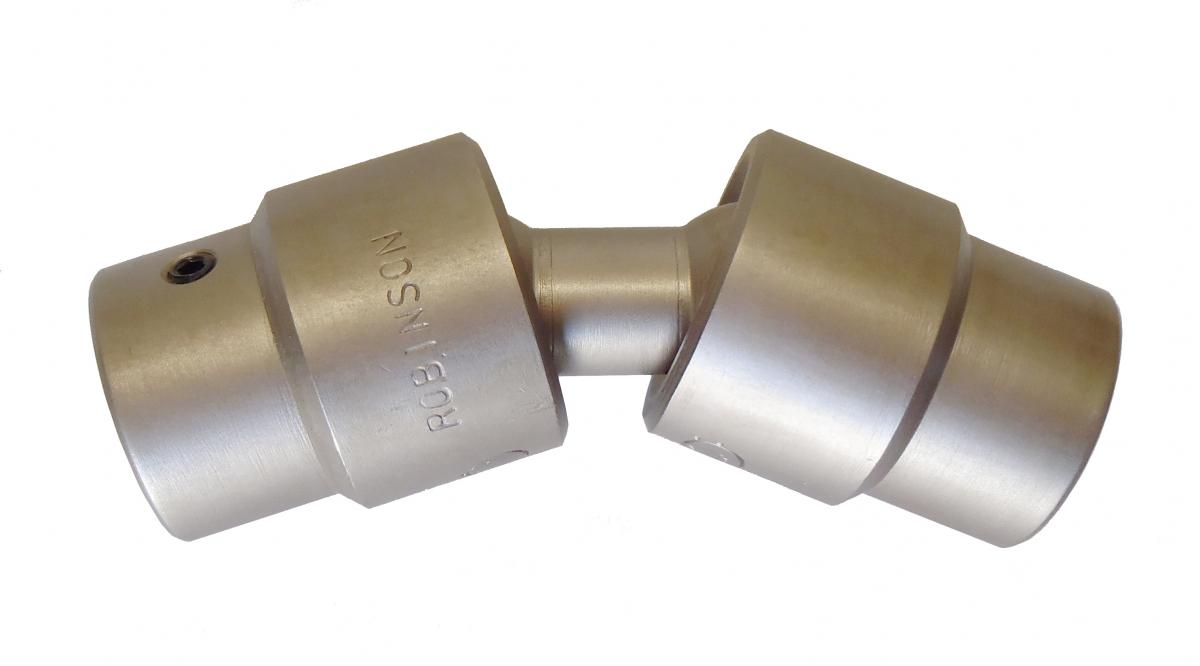

Double Universal Joint: Female – Female



SQUARE SIZE

OAL (inches)

MODEL NO.

INCH

MM

3/8

9.5

3-15/16

DUJ/95

1/2

12.7

4

DUJ/127

3/4

19.0

4-11/16

DUJ/195

1

25.4

6-1/32

DUJ/254

Other sizes available.



Extension Universal Joint: Female – Male

SQUARE SIZE FEMALE

SQUARE SIZE MALE

OAL

MANDREL NO.

INCH

MM

INCH

MM

3/8

9.5

3/8

9.5

6

UE/95/6

3/8

9.5

3/8

9.5

9

UE/95/9

3/8

9.5

3/8

9.5

12

UE/95/12

3/8

9.5

3/8

9.5

9

UE/95S/9

3/8

9.5

3/8

9.5

12

UE/95S/12

3/8

9.5

3/8

9.5

16

UE/95S/16

1/2

12.7

1/2

12.7

6

UE/127/6

1/2

12.7

1/2

12.7

9

UE/127/9

1/2

12.7

1/2

12.7

12

UE/127/12

1/2

12.7

1/2

12.7

16

UE/127/16

1/2

12.7

1/2

12.7

20

UE/127/20

3/4

19.0

3/4

19.0

9

UE/195/9

3/4

19.0

3/4

19.0

12

UE/195/12

3/4

19.0

3/4

19.0

16

UE/195/16

3/4

19.0

3/4

19.0

20

UE/195/20


1

25.4

1

25.4

9

UE/254/9


1

25.4

1

25.4

12

UE/254/12


1

25.4

1

25.4

16

UE/254/16



Reversible Ratchet Wrench

SQUARE SIZE

LENGTH (inches)

MODEL NO.

INCH

MM

3/8

9.5

8

RRW38

1/2

12.7

10

RRW12

3/4

19.0

20

RRW34

1

25.4

24

RRW1000



Adapter: Female – Female

D:\ab-charts by ronaldo delete and die\Scan\FFadapter.BMP

SQUARE SIZE

MODEL NO.

INCH

MM

3/8

9.5

FA38

1/2

12.7

FA12

3/4

19.0

FA34

1

25.4

FA1000

Other sizes available



Parallel Gear Train Drive

D:\ab-charts by ronaldo delete and die\Scan\PARALLELGEAR.BMP

SQUARE SIZE

No. OPGS.

MODEL No.

REPLACEMENT PARTS

DIMENSIONS

DOUBLE GEAR

CENTER GEAR

MODEL No.

NOS. REQD.

MODEL No.

NOS. REQD.

OAL

WIDTH

3/8

2

BG/2/95

BGH/2/95

2

BGC/2/95

3

8-1/2

2

1/2

2

BG/2/127

BGH/2/127

2

BGC/2/127

3

8-1/2

2

1/2

3

BG/3/127

BGH/3/127

3

BGC/3/127

2

8-1/2

2

3/4

2

BG/2/195

BGH/2/195

2

BGC/2/195

2

9

2-1/2

3/4

3

BG/3/195

BGH/3/195

3

BGC/3/195

1

9

2-1/2

1

2

BG/2/254

BGH/2/254

2

BGC/2/254

2

9

2-1/2



Right Angle Gear Drive

D:\ab-charts by ronaldo delete and die\Scan\RIGHThGEAR.BMP

SQUARE DRIVE MALE

SQUARE DRIVE FEMALE

MODEL NO.

OAL

(INCH)

GEAR HOUSING

MIN. HAND HOLE DIA

GEAR RATIO

INCH

MM

INCH

MM

LENGTH

WIDTH

THICK

1/2

12.7

1/2

12.7

RW/127/127

10-3/16

3-3/16

2-1/4

1-3/8

3-3/8

4-1/2 TO 1

1/2

12.7

3/4

19.0

RW/127/195

10-3/16

3-3/16

2-1/4

1-3/8

3-3/8

4-1/2 TO 1

3/4

19.0

3/4

19.0

RW/195/195

11-9/32

3-27/32

2-5/8

1-3/8

4

4-1/2 TO 1

3/4

19.0

1

25.4

RW/195/254

11-9/32

4-1/4

3-1/16

1-3/8

4-1/2

4-1/2 TO 1
